13781

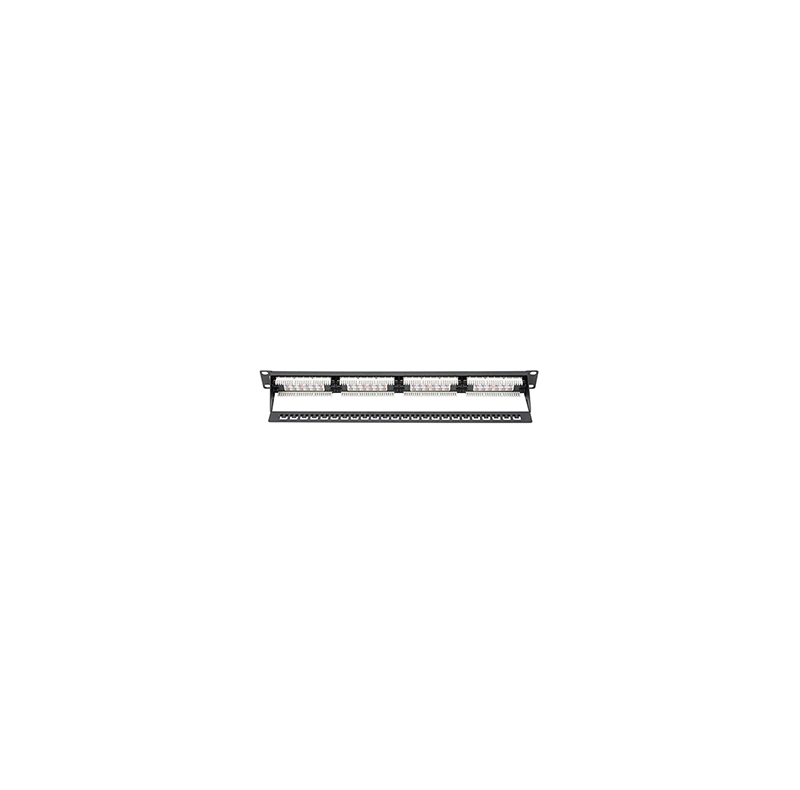

MODEL : DN-91411DIGITUS MODULAR PATCH PANEL, SHIELDED 24-PORT, BLANK, 1U, RACK MOUNT, COLOR BLACK RAL 9005TECHNICAL DETAILS : LAYOUT KEYSTONE ENTRY: STRAIGHT, AREA OF APPLICATION: 483 MM (19″) CABINET, NORMS: ISO/IEC 11801 3RD ED., EN 50173-1, EIA/TIA 568-C. GENERAL PROPERTIES: SUITABLE FOR 483 MM (19″) CABINET MOUNTING, SUITABLE FOR SHIELDED DIGITUS® KEYSTONE MODULES AND COUPLERS, CENTRAL GROUND CONNECTION. TECHNICAL PROPERTIES: HOUSING MATERIAL: 1.5 MM SPCC COLD ROLLED STELL SHEET, POWDER-COATED, MATERIAL STANDARD: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401, GROUNDING BAR MATERIAL: GALVANIZED STEEL, GROUNDING WIRE: 18 AWG, 40 CM. PHYSICAL PROPERTIES: OPERATION TEMPERATURE: -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C), NUMBER OF BUSES/COUPLINGS: 24, SUITABLE FOR NUMBER OF CONNECTORS: 24, TYPE OF CONNECTOR: RJ45 8(8), SCREENED: YES, CATEGORY: OTHER, CONNECTION TYPE: OTHER, NUMBER OF HEIGHT UNITS: 1, COLOUR: BLACK, RAL-NUMBER: 9005, MOUNTING METHOD: 482.6 MM (19 INCH) MOUNTING, HEIGHT: 44 MM, WIDTH: 483 MM ,DEPTH: 15 MM
