37860

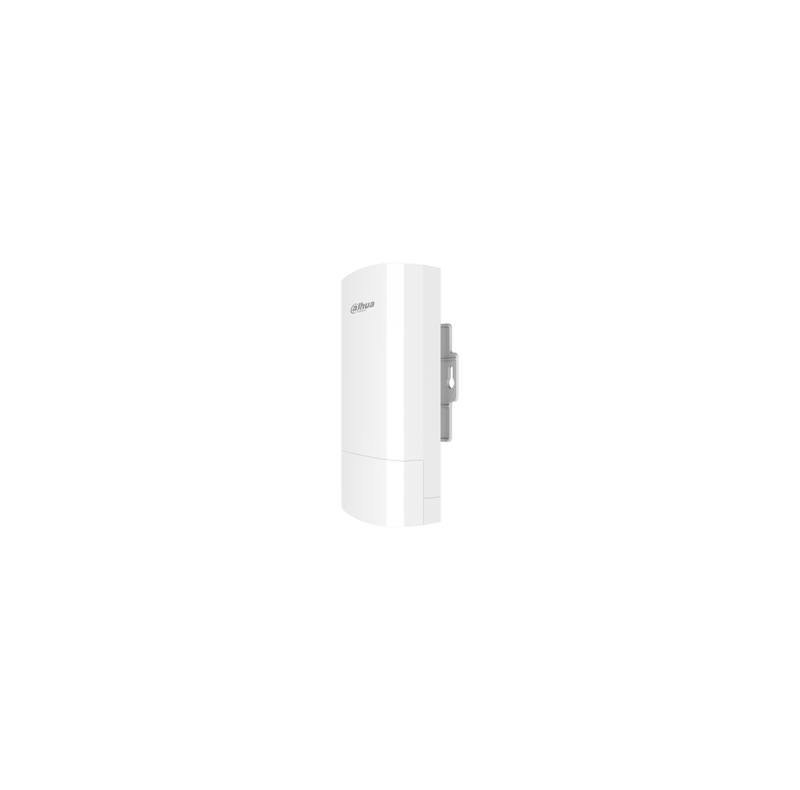

MODEL : WB2-60N-IELEVATOR WIRELESS BRIDGE. ON-SCREEN DISPLAY. ONE-PRESS PAIRING. SPECTRUM ANALYSIS HELPS YOU CHOOSE THE OPTIMAL CHANNEL. PASSIVE POE POWER SUPPLY.SPECIFICATION : FUNCTION SLOTS 2, POWER SUPPLY PASSIVE POE, POWER CONSUMPTION 5 W, WAN PORT 1 × 10/100 MBPS RJ-45 PORT, INDICATOR LIGHT : 1 × SYSTEM INDICATOR 1 × WAN PORT INDICATOR 1 × LAN PORT INDICATOR 1 × WI-FI INDICATOR. EXTERNAL PORT : 1 × LAN PORT (RJ-45) 1 × WAN PORT (RJ-45). WIRELESS STANDARD IEEE802.11B/G/N, OPERATING FREQUENCY 2.412 GHZ–2.484 GHZ, TERMINAL COMMUNICATION PROTOCOL TCP/IP PROTOCOL, AIR INTERFACE RATE 300 MBPS, MAX. OUTPUT POWER 20 DBM ± 2 DBM, ANTENNA BUILT-IN ANTENNA, ANTENNA GAIN 8 DBI, ANTENNA DIRECTION ANGLE HORIZONTAL: 60° VERTICAL: 60°, POLARIZATION, HORIZONTAL/VERTICAL DUAL POLARIZATION CROSS-POLARIZATION ISOLATION 23 DBI, MAX. VSWR <1.5, TRANSMISSION DISTANCE 1 KM (3280.84 FT), OPTIMAL TRANSMISSION DISTANCE 300 M (984.25 FT), NETWORK MODE BRIDGE MODE, OPERATING MODE ACCESS POINT MODE REPEATER MODE, CHANNEL 1–13, DEVICE TYPE, 802.11B/G/N CHANNEL WIDTH 20 MHZ 40 MHZ, STANDARD TX POWER 20 DBM, PROTECTION IP65, WAN PORT CONNECTION MODE ETHERNET PORT, ENCRYPTION MODE WPA2, MANAGEMENT AND LOG AC SYSLOG NTP TELNET, FIRMWARE UPDATE WEB UPDATE, WIRELESS CERTIFICATION WPA2, SECURITY MECHANISM PASSWORD, NETWORK PROTOCOL UDP HTTPS IPV4 DNS TCP/IP HTTP NTP DHCP, DHCP SERVER YES, OPERATING TEMPERATURE –30 °C TO +55 °C (–22 °F TO +131 °F), STORAGE TEMPERATURE –40 °C TO +70 °C (–40 °F TO +158 °F), OPERATING HUMIDITY 5%–95% (RH), GROSS WEIGHT 1.33 KG (2.9 LB), NET WEIGHT 0.72 KG (1.6 LB), PACKAGING DIMENSIONS 274 MM × 22 8MM × 78 MM (10.79" × 8.98" × 3.07"), PRODUCT DIMENSIONS 168.0 MM × 88.0 MM × 57.6 MM (6.61" × 3.46" × 2.27"), MEMORY 64 MB, STATICS PROTECTION ±6 KV, LIGHTING PROTECTION ±2 KV, INSTALLATION POLE MOUNTPACKING LIST : 2 × DEVICES, 2 × POE ADAPTERS, 2 × POWER CABLES, 2 × TWISTED PAIR CABLES, 2 × HOSE CLAMP, 1 × USER MANUAL, 1 × LAWS AND REGULATIONS MANUAL
