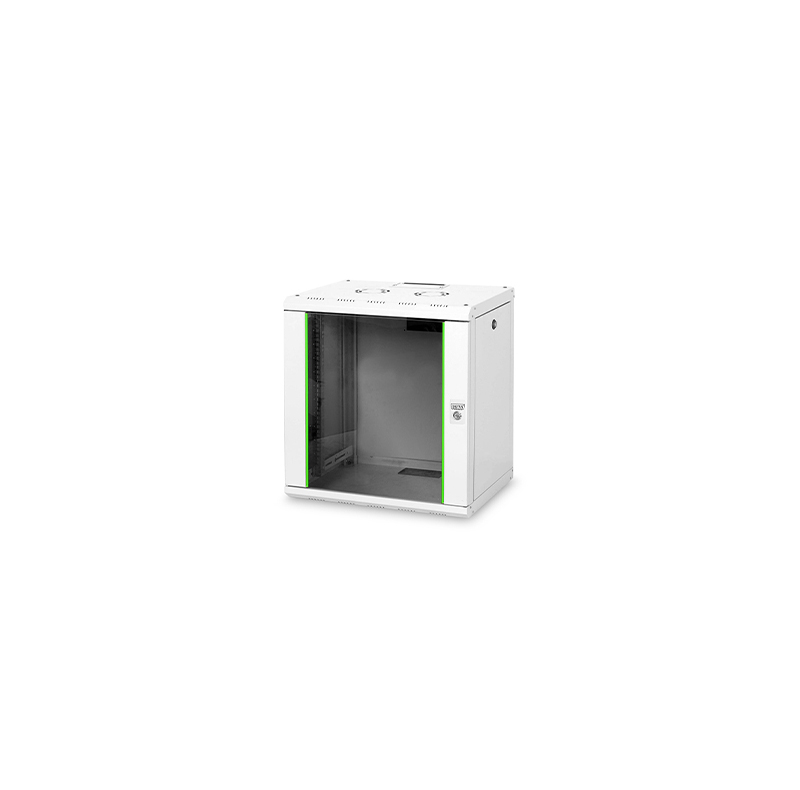

RACK ORMAR 12HE 600X450 SIVI DIGITUS DN-19-12U

MODEL: DN-19-09-12UDIMENZIJE – 600X600X450MM TEZINA – 26,00 KGTECHNICAL DETAILS: SAFETY CLASS RATING IP20, LOCKABLE SAFETY-GLASS DOOR WITH STEEL FRAME, 210° DOOR OPENING ANGLE, 1-POINT-LOCKING-MECHANISM ON THE FRONT DOOR, SIDE PANELS ARE LOCKABLE AND REMOVABLE, 483 MM (19“) PROFILE RAILS MOUNTED ON THE FRONT SIDE INSIDE OF THE CABINET, GALVANIZED, 483 MM (19“) PROFILE RAILS ARE ADJUSTABLE IN DEPTH AND WITH HEIGHT UNIT MARKING, MAX. INSTALLATION DEPTH: 370 MM, CABLE ENTRY ON THE REAR SIDE AND BASE WITH PLASTIC COVER AND TOP WITH SLIDING COVER, ROOF IS PREPARED FOR FAN UNITS (PUNCHED OUT ENTRIES), VENTILATION SLOTS FOR ACTIVE AND PASSIVE VENTILATION AND EXHAUSTING, SEVERAL EARTHING POINTS FOR RACK COMPONENTS, INCL. INSTALLATION SET (SCREWS, CAGE NUTS, WASHERS), RACK IS COMPLETELY MOUNTED, EQUIPMENT MOUNTING DEPTH MIN.-MAX.: 305-370 MM, CABINET TYPE: WALL MOUNTING CABINET, COLOR: LIGHT GREY, RAL 7035, DEPTH: 450 MM, FRONT DOOR: GLASS DOOR, SINGLE OPENING, LOAD CAPACITY: 100 KG, UNITS: 12, WIDTH: 600 MM, IP PROTECTION CLASS: IP20, MOUNTED: YES
