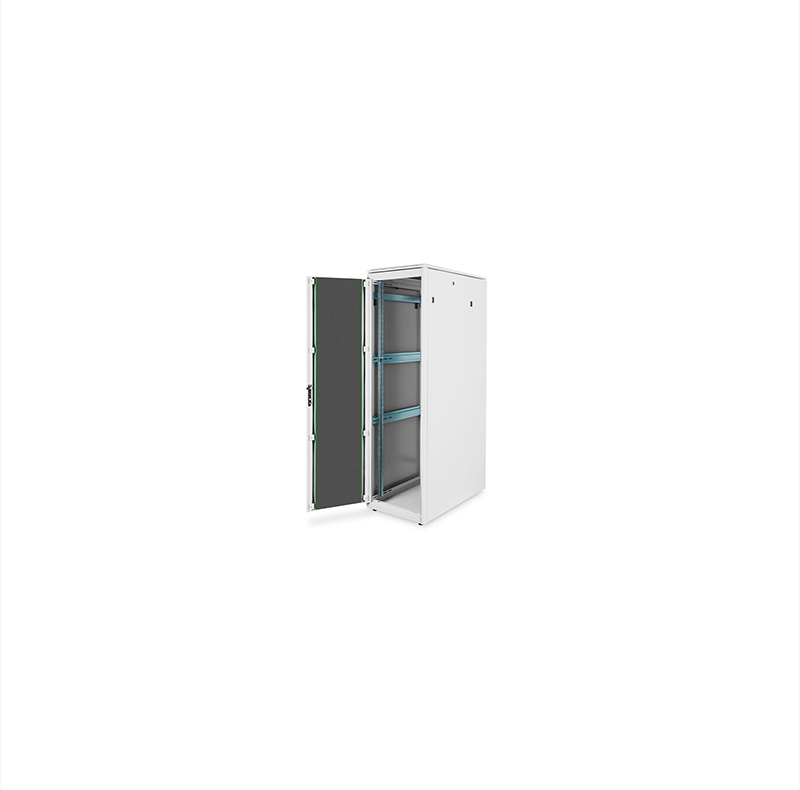

RACK ORMAR 22HE 600X600 SIVI LEGRAND EVO22U6060

MODEL: EVO22U6060DIMENZIJE RECKA : VISINA 1083 MM X SIRINA 600 MM X DUBINA 600MM. NOSIVOST 1000 KG.TESTS AND CERTIFICATIONS : LP PROTECTION DEGREE, IP20 ACCORDINGLY EN61587-1, IEC 60529. CERTIFICATIONS : SHEET STEEL – DIN EN 10130 – 99 EREDLI DC-01 6112, 7122, ROHS, ELECTROSTATIC POWDER COATING – ISO 9001, ISO 2178, ISO 2813, ISO 6272, ISO 8130-5, ISO 8130-3, ROHS, FAN – ISO 9001, CE (89/336/EEC EMC, 73/23/EEC LVD}, ROHS, GLASS – ISO 9001, EN 12150 – 1: 2000 TEMPERED AND SECURE, FIXINGS – DIN 7985, DIN 965, DIN 7981, DIN 934, DIN 985, DIN 933, ROHS, CASTERS – TS EN 12530, TS EN 12532, ROHS, LOCK – DIN 1743, DIN 53571, ROHSSHIPPING STRUCTURE – ASSEBLED. . MOUNTING TYPE – STAND ALONE. LOAD CARRYING CAPACITY (KG) – 1000 KG. CERTIFICATION ON PRODUCT – TSE, EAC. SURFACE FINISH – ELECTROSTATIC POWDER COATED C/WITH SURFACE TREATMENT 60-120 MICRON PAINT THICKNESS AND TESTED ACCORDING TO IEC 60068-2-1,2-2, 2-30,2-42, 2-43, 2-49, 2-11. STANDARD COLOUR – GRAY: RAL 7035. IP PROTECTION STANDARD – IP20FRAMEWORK TOP AND BOTTOM BASE UNITS – SOLID METAL, 1,5 MM, TOP AND BOTTOM BASE UNITS CONSTRUCTION – COMPLETELY MODULAR, UPRIGHTS – SOLID METAL, 1,5 MM, UPRIGHTS CONSTRUCTION – TIGHTLY FIXED INTO TOP AND BOTTOM BASE UNITS 6 TIMES FOLDEDINTERIOR PARTS : 19’’ MOUNTING ANGLES – SOLID METAL, 1,5 MM, 3 TIMES FOLDED “U” MARKING AVAILABLE, 2 EA. AT REAR, 2 EA. AT FRONT 19” C TYPE SUPPORT RAILS IN DEPTH SOLID METAL, 1,5 MM, L TYPE TOP AND BOTTOM RAIL SUPPORTS 1,5 TO 2.5MM 4 FOLDED GALVANIZED STEEL.
