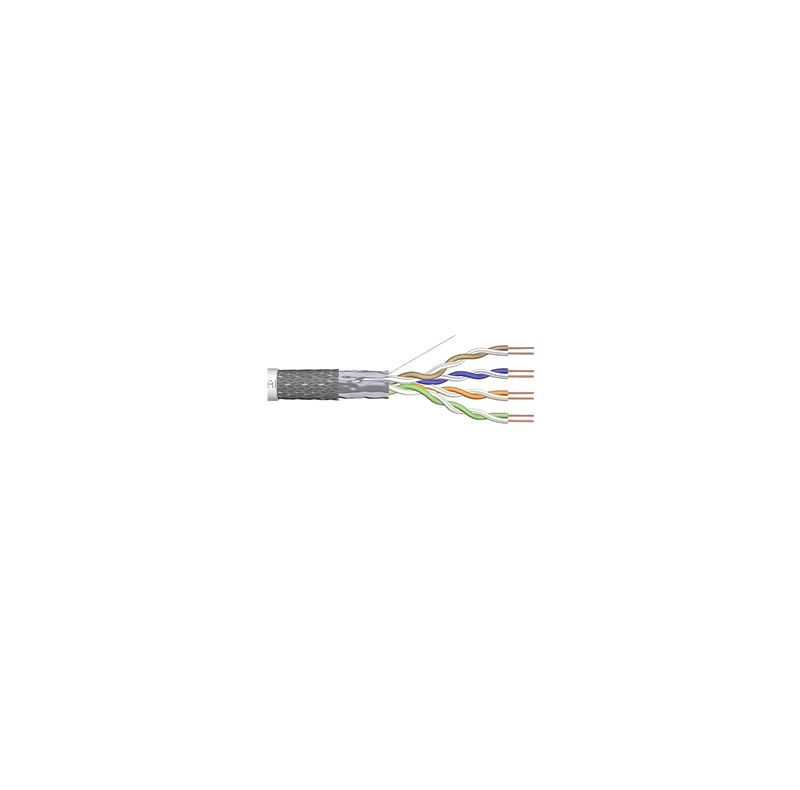

SFTP KABL CAT5E 305M DK-1531-V-305

MODEL: DK-1531-V-305DIGITUS CAT.5E SF/UTP INSTALLATION CABLE, 305 M, SIMPLEX, ECA, PRODUCT NUMBER: DK-1531-V-305, EAN: 4016032241164, CAT 5E SF-UTP INSTALLATION CABLE, 100 MHZ ECA (PVC), AWG 24/1, 305 M PAPER BOX, SIMPLEX, GR, FUTURE-ORIENTED STANDARDS AND HIGH-END QUALITY FOR YOUR NETWORK. PROPERTIES: CAT5E CABLE WITH 4X2 AWG 24/1 CORE DIAMETER 0.51 MM TWISTED PAIR COPPER CABLES (CU) – 100 MHZ BANDWIDTH UP TO 1 GBIT/S 1GBASE-T IN ACCORDANCE WITH IEEE 802.3 – EXTERNAL DIAMETER 6.1 MM – POWER OVER ETHERNET (POE). QUALITY CHARACTERISTICS: LAN CABLE IS SHIELDED WITH MESH AND METAL FOIL (SF/UTP SHIELDING) – STANDARDS: ANSI/TIA-568-C, ISO/IEC 11801, IEC 61156-5, DIN EN 50173, DIN EN 50288-2-1, EN 50174-2. FIRE PROTECTION: DATA CABLE CORRESPONDS TO CPR EURO CLASS BAUPVO ECA IN ACCORDANCE WITH EN 50575 – WITH PVC OUTER SHEATH (0.50 MM THICKNESS) COLOR GREY (RAL 7035). INSTALLATION: CONNECTION OF NETWORK COMPONENTS (NETWORK SOCKET, PATCH PANEL, KEYSTONE MODULE, RJ45 NETWORK PLUG) AND NETWORK DEVICES (WLAN REPEATER, LAN SWITCH, POE SWITCH, SPLITTER, ACCESS POINT, NETWORK ROUTER). APPLICATIONS: FOR UNIVERSAL NETWORK CABLING IN STRUCTURES, OFFICES, BUILDINGS, COMMERCE, HOME, HOUSE, INDUSTRY, CELLAR, WAREHOUSE, DATA CENTER OR APARTMENT (NETWORK CABLE, DSL CABLE, INTERNET CABLE, TAE CABLE, PHONE CABLE). THE DIGITUS® CAT.5E SF/UTP INSTALLATION CABLE IS CHARACTERIZED BY THE FOLLOWING CABLE CONSTRUCTION 4X2X AWG23/1 AND REACHES A TRANSMISSION FREQUENCY UP TO 100 MHZ. THE PVC CABLE JACKET IS CONFORM TO THE CPR EURO CLASS ECA. THE CABLE IS SUITABLE FOR BUILDING STRUCTURED CABLING IN THE SECONDARY AND TERTIARY AREA. COMPLIANT WITH THE FOLLOWING STANDARDS ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1.TECHNICAL DETAILS : PHYSICAL PROPERTIES: CONDUCTOR: BARE ANNEALED COPPER, SOLID AWG 24/1, INSULATION: PE (POLYETHYLENE), TOTAL NUMBER OF INSULATED CONDUCTORS: 8, TWISTED IN 4 PAIRS, COLOR CODE: BLUE-WHITE, ORANGE-WHITE, GREEN-WHITE, BROWN-WHITE, INDIVIDUAL PAIR SHIELDING: NONE, OVERALL SHIELDING: FOIL- AND BRAID SHIELDED, WITH DRAIN WIRE, OUTER SHEATH: ECA ACC. TO EN 50575 PVC, OUTER SHEATH DIAMETER (NOMINAL): 0.50 MM NOMINAL, OUTER SHEATH COLOR: GREY (RAL 7035). MECHANICAL PROPERTIES: TENSILE LOADING: 150N MAX., DYNAMIC BENDING RADIUS: 8X AD MM MIN., STATIC BENDING RADIUS: 4X AD MM MIN., SHIPPING- AND STORAGE TEMPERATURE RANGE: -20 °C UP TO +75 °C, OPERATING TEMPERATURE RANGE: -20 °C UP TO +60 °C, INSTALLATION TEMPERATURE RANGE: 0 °C UP TO +50 °C, OVERALL DIAMETER SIMPLEX (NOMINAL): 6.1 MM NOMINAL. ELECTRICAL PROPERTIES: IMPEDANCE: 100±5 OHM @ 1-600 MHZ, CAPACITANCE: 48 PF/M NOMINAL @ 800 HZ, CAPACITANCE UNBALANCE (PAIR-GROUND): 1.5 PF/M MAX. @ 1 KHZ, INSULATION RESISTANCE: 5 GOHM X KM MIN., DC LOOP RESISTANCE: 147 OHM/KM MAX. (2% MAX. RESISTANCE UNBALANCE), VOLTAGE RESISTANCE: 72 VDC MAX., COUPLING ATTENUATION: CA-TYPE 3, SIGNAL PROPAGATION DELAY: 535 NS/100 M MAX. PROPAGATION DELAY: 20 NS/100 M MAX. SEPARATING CLASS: ,,C” GEM. EN 50174-2, NVP: 69%, ASSORTMENT: TWISTED PAIR INSTALLATION CABLES, CATEGORY: CAT 5E, SHIELDING: SF-UTP, FOIL AND BRAID SHIELDING, CPR: ECA, LENGTH: 305 M, COLOR: GREY, JACKET: PVC, STRUCTURE: 4 X 2 AWG 24/1, SOLID TWISTED PAIR
