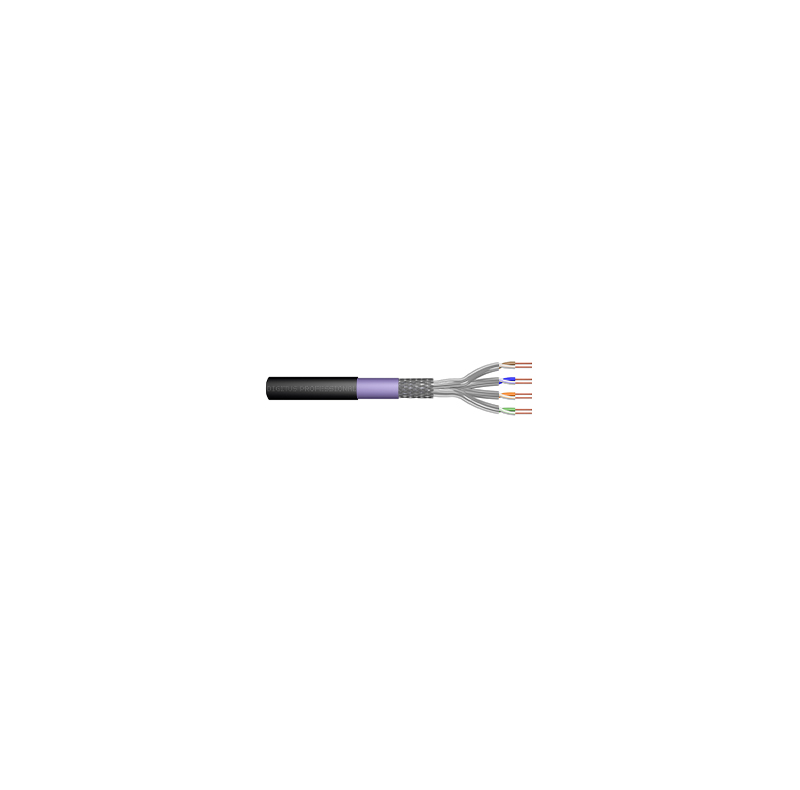

SFTP KABL CAT7 LSZH-1 1000M OUTDOOR DK-1741-VH-10-OD

MODEL : DK-1741-VH-10-ODDIGITUS CAT 7 S-FTP OUTDOOR INSTALLATION CABLE, 1200 MHZ, PE, INNER ECA (LSZH-1), AWG 23/1, 100 M RING, SIMPLEX, COLOR BLACK & PURPLE. 4 X 2 X AWG23 S-FTP CAT7 1200MHZ PE, BURIED CABLE. SUITABLE FOR INSTALLATIONS IN DRY OR WET AREAS, OUTDOOR OR GROUND. CONFORMING TO ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.TECHNICAL DETAILS: BASIC CONDUCTOR: SOLID AWG 23/1, BARE ANNEALED COPPER 0.57 MM NOMINAL, INSULATION: SFS-PO, TOTAL NUMBER OF INSULATED CONDUCTORS: 8, TWISTED IN 4 PAIRS, COLOR CODE: BLUE-WHITE, ORANGE-WHITE, GREEN-WHITE, BROWN-WHITE, INDIVIDUAL PAIR SHIELDING: ALUMINUM FOIL, PROVIDING 100 % COVERAGE, OVERALL SHIELDING: TIN-COATED COPPER WIRE BRAID, 35% NOM. COVERAGE, OUTER JACKET: PE, OUTER JACKET DIAMETER: 0.50 MM NOMINAL, COLOR: BLACK (RAL 9005). MECHANICAL PROPERTIES: TENSILE LOADING: 150N MAX., DYNAMIC BENDING RADIUS: 8X AD MM MIN., STATIC BENDING RADIUS: 4X AD MM MIN., SHIPPING- AND STORAGE TEMPERATURE RANGE: -20 °C UP TO +60 °C, OPERATING TEMPERATURE RANGE: -50 °C UP TO +60 °C, INSTALLATION TEMPERATURE RANGE: 0 °C UP TO +60 °C, OVERALL DIAMETER: 8.5 MM NOM., WEIGHT: 66.5 KG/KM. ELECTRICAL PROPERTIES:, MEAN IMPEDANCE: 100±5 OHM @ 1-600 MHZ, CAPACITANCE: 40 PF/M NOMINAL @ 1 KHZ, CAPACITANCE UNBALANCE (PAIR-GROUND): 1.6 PF/M MAX. @ 1 KHZ, INSULATION RESISTANCE: 5 GOHM X KM MIN., CALORIC VALUE: 650MJ/M, DC LOOP RESISTANCE: 147 OHM/KM MAX. (2% MAX. RESISTANCE UNBALANCE), VOLTAGE RESISTANCE: 72 VDC MAX., COUPLING ATTENUATION: 80 DB, SIGNAL PROPAGATION DELAY: 450 NS/100 M MAX., DELAY DIFFERENCE: 15 NS/100 M MAX., SEPARATING CLASS: “D” ACC. TO EN 50174-2NVP: 79%, CATEGORY: CAT 7, SHIELDING: S-FTP, PAIRS IN METAL FOIL AND BRAID SHIELDING, STRUCTURE: 4 X 2 AWG 23/1, SOLID TWISTED PAIR, COLOR: BLACK, LENGTH: 1000 M, JACKET: PE, ASSORTMENT: TWISTED PAIR INSTALLATION CABLES
