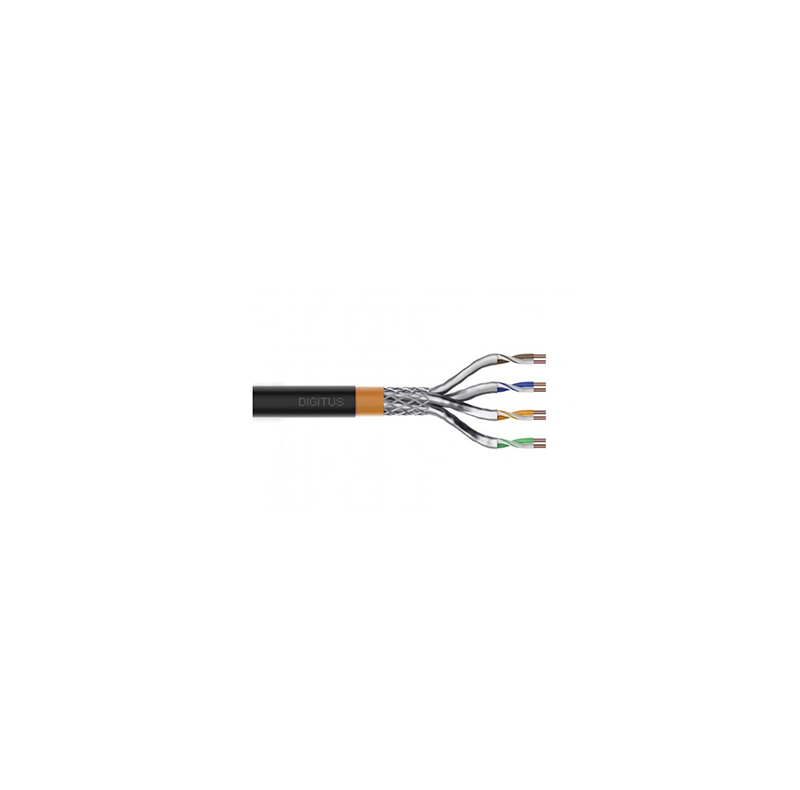

SFTP KABL CAT7 LSZH-1 500M OUTDOOR DK-1741-VH-5-OD

MODEL:DK-1741-VH-5-ODDIGITUS CAT 7 S-FTP PIMF INSTALLATION CABLE, RAW 500M, DRUM, AWG 23/1, 1200 MHZ, PE, SX, BL. FUTURE-ORIENTED STANDARDS AND HIGH-END QUALITY FOR YOUR NETWORK.10GBIT ETHERNET1200 MHZ TRANSMISSION FREQUENCYPERMANENT LINK CERTIFIED. POE POWER OVER ETHERNET SUPPORT-. PE OUTER JACKET, CPR CLASS ECA INNER JACKET. THE DIGITUS® PROFESSIONAL CAT.7 S/FTP UNDERGROUND CABLE IS CHARACTERIZED BY THE FOLLOWING CABLE STRUCTURE 4X2X AWG23/1 AND ACHIEVES A TRANSMISSION FREQUENCY OF UP TO 1200 MHZ. THE CABLE HAS A PE OUTER SHEATH AND A HALOGEN-FREE INNER SHEATH AND CONFORMS TO THE IEC 60332-1, FRNC-B, LSZH-1 AND BAUPVO EUROCLASS ECA STANDARDS. THE CABLE IS SUITABLE FOR INSTALLATIONS IN DRY OR DAMP ROOMS, OUTDOORS OR IN THE GROUND. CONFORMS TO THE STANDARDS ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.SPECIFICATION : PHYSICAL PROPERTIES: CONDUCTOR: BARE COPPER WIRE, AWG 23/1, INSULATION: SFS-PE (FOAMED POLYETHYLENE JACKET), TOTAL NUMBER OF INSULATED CONDUCTORS: 8, TWISTED INTO 4 PAIRS, COLOR CODE: BLUE-WHITE, ORANGE-WHITE, GREEN-WHITE, BROWN-WHITE, SHIELDING OF THE INDIVIDUAL PAIRS: ALUMINUM-LAMINATED POLYESTER FILM, COVERS 100%, OVERALL SHIELDING: COPPER BRAIDINGOUTER SHEATH: PE (POLYETHYLENE) UV-RESISTANT, OUTER SHEATH THICKNESS (NOMINAL): 0.50 MM NOMINAL, OUTER CASING COLOR: BLACK (RAL 9005)MECHANICAL PROPERTIES: STRAIN RELIEF: 150N MAX., DYNAMIC BENDING RADIUS: 8X AD MM MIN., STATIC BENDING RADIUS: 4X AD MM MIN., TRANSPORT AND STORAGE TEMPERATURE RANGE: -20 °C TO +60 °C, OPERATING TEMPERATURE RANGE: -50 °C TO +60 °C, INSTALLATION TEMPERATURE RANGE: 0 °C TO +60 °C. OUTER DIAMETER SIMPLEX (NOMINAL): 8.5 MM (ECA), WEIGHT (KG/KM): 66.5 KG/KMELECTRICAL PROPERTIES: IMPEDANCE: 100±5 OHM @ 4-100 MHZ 100±25 OHM @ 100-1200 MHZ, CAPACITANCE: 45 PF/M NOMINAL @ 1 KHZ, CAPACITANCE UNBALANCE (PAIR-EARTH): 1.6 PF/M MAX. @ 1 KHZ, INSULATION RESISTANCE: 5 GOHM X KM MIN., DC RESISTANCE: 95 OHM/KM MAX. (2% MAX. UNBALANCED RESISTANCE), LOOP RESISTANCE: 190 OHM/KM MAX. (2% MAX. UNBALANCED RESISTANCE), OPERATING VOLTAGE: 72 VDC MAX., COUPLING ATTENUATION: CA-TYPE 1B, PHASE DELAY: 450 NS/100 M MAX., TIME DELAY: 10 NS/100 M MAX., SEPARATION CLASS: “D” ACCORDING TO EN 50174-2, NVP: 79%
