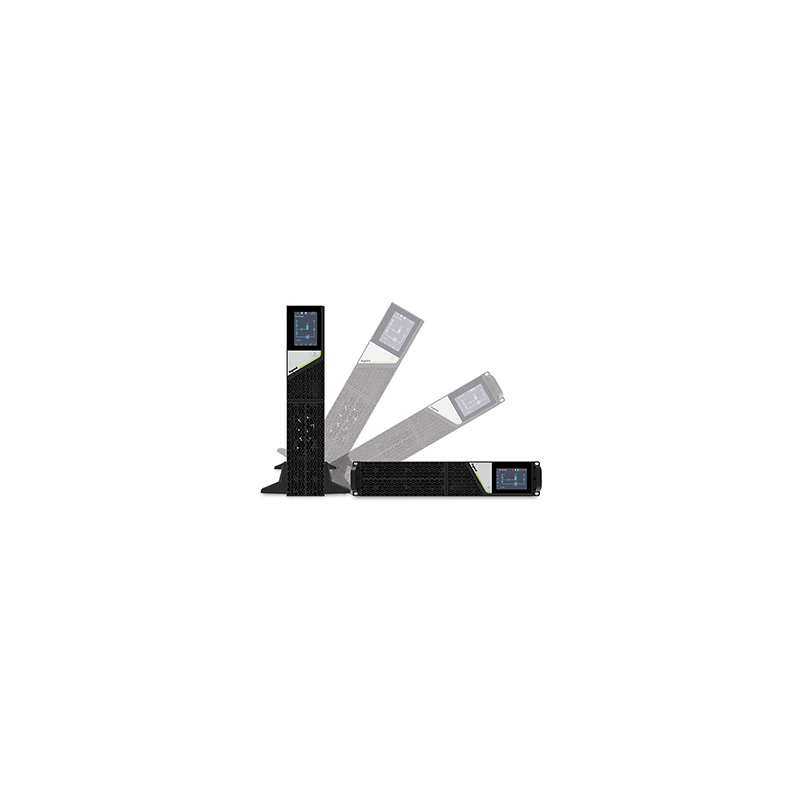

UPS LEGRAND KEOR DK 3000VA/3000W 2U CONVERTIBLE RACK / TOWER 311342

MODEL : 311342THE LEGRAND UPS MODEL KEOR DK IS AN UNINTERRUPTIBLE POWER SOURCE WITH HIGH FREQUENCY PWM TECHNOLOGY, DOUBLE CONVERSION ON-LINE, SOLID NEUTRAL, RATED POWER 1000 VA, PF 1. EQUIPPED WITH VALVE-REGULATED, HERMETICALLY-SEALED ACCUMULATOR BATTERIES, CONTAINED IN A SPECIFIC COMPARTMENT INSIDE THE UPS OR IN ONE OR MORE EXTERNAL CABINETS. THE ELECTRONICS AND BATTERIES ARE CONTAINED IN JUST TWO RACK UNITS. CONVERTIBLE RACK / TOWER.GENERAL CHARACTERISTICS : NOMINAL POWER [KVA] 3000, ACTIVE POWER [KW] 3000, TECHNOLOGY ON-LINE DOUBLE CONVERSION VFI-SS-11, WAVEFORM SINUSOIDAL, UPS ARCHITECTURE CONVERTIBLE TOWER AND RACK 19’’, EFFICIENCY (AC-AC) 93%, ECO MODE EFFICIENCY 98.3%, INPUT VOLTAGE [V] 230, INPUT FREQUENCY [HZ] 50/60, INPUT VOLTAGE RANGE 176~280V :100%LOAD, 160~280V : 75% LOAD, 110~280V : 50% LOAD, THD INPUT CURRENT <5%, INPUT POWER FACTOR 0.99 @ FULL LINEAR LOAD, OUTPUT VOLTAGE [V] 230, ADJUSTABLE TO 200/208/220/230/240 V, OUTPUT FREQUENCY (NOMINAL) 50/60 HZ, CREST FACTOR 3:1, THD OUTPUT VOLTAGE < 3% @ 100% LINEAR LOAD < 5% AT 0.9 NON-LINEAR LOAD, OUTPUT VOLTAGE TOLERANCE ±1%, BYPASS STATIC BYPASS SWITCH, DISPLAY AND SIGNALS TRUE-COLOR TOUCH-PANEL 3.5’’ WITH LED STATUS BAR, COMMUNICATION PORTS RS232, USB, 3 DRY-CONTACT, EPO, ROO, REMOTE MANAGEMENT AVAILABLE, NETWORK INTERFACE SLOT SNMP.STANDARDS AND REGULATIONS : THE UPS KEOR DK HAS THE CE MARK ACCORDINGLY WITH THE EU DIRECTIVES 2006, 95 2004 108 AND IT COMPLY WITH FOLLOWING STANDARDS- EN 62040-1: GENERAL RULES FOR ELECTRIC SAFETY- EN 62040-2: ELECTROMAGNETIC COMPATIBILITY AND IMMUNITY (EMC)- EN 62040-3: PERFORMANCES AND TESTING RULES. ROHS : COMPLIANCE WITH THE 2011/65/EU DIRECTIVE (ROHS), AS MODIFIED BY THE , 2015/863/EU DELEGATED DIRECTIVE, ON THE RESTRICTION OF THE USE OF CERTAIN , HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT.
