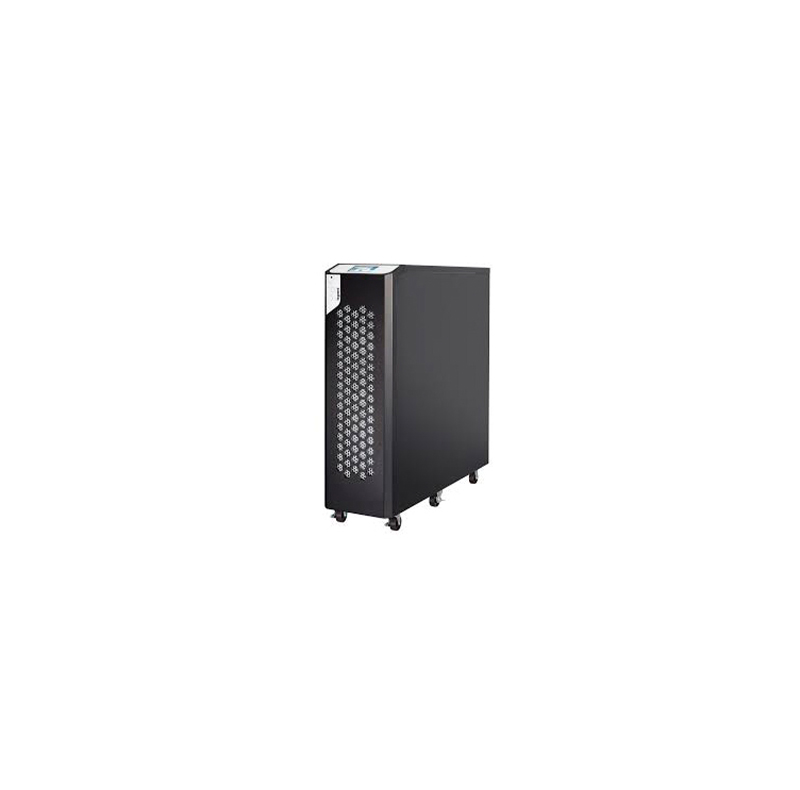

UPS LEGRAND KEOR T COMPACT 10KVA/9KW 11 MIN – 311101

MODEL: 311101PRODUCT CHARATERISTICS : PARALLELABILITY UP TO 6 UNITS FOR SCALABLE OR REDUNDANT SOLUTION. ACTIVE POWER FACTOR CORRECTION OF THE LOAD (INPUT PF1, THDI3%). EMBEDDED BACKFEED PROTECTION.. EMBEDDED COLD START FUNCTION.. COMPACTNESS AND ACTRACTIVE LOOKSPECIFICATION : INPUT VOLTAGE 320-480 V, PRIMARY FREQUENCY 40-70 HZ, NUMBER OF PHASES PRIMARY 3, OUTPUT VOLTAGE 380-415 V, SECONDARY FREQUENCY 50-60 HZ, OUTPUT EFFECTIVE POWER 9000 W, OUTPUT APPARENT POWER 10000 VA, USB INTERFACE YES, WITH COMMUNICATION INTERFACE RS-232 YES, NUMBER OF PHASES SECONDARY 3, SNMP YES, VOLTAGE TYPE AC, HEIGHT 890 MM, WIDTH 260 MM, DEPTH 850 MM, WEIGHT 149 KG, , SUITABLE FOR NETWORK-MANAGEMENT YES, USV- TECHNOLOGY ONLINE, CONSTRUCTION TYPE FREE STANDING MODEL, MAX. VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) 2 %, OUTPUT POWER FACTOR 0.9, OVERALL EFFICIENCY 93.5 %, EFFICIENCY IN ECO-MODE 98 %, POTENTIAL FREE SWITCH CONTACT YES, AUTO SHUT DOWN FUNCTION YES, INPUT CONNECTION FIXED CONNECTION, NUMBER OF OUTPUT CONNECTIONS FIXED CONNECTION 1, DEGREE OF PROTECTION (IP) IP20, OPERATING / SETTING TEMPERATURE 0-40 °C, STORAGE TEMPERATURE -20-70 °C, SUPPLY CURRENT 13.9-15.2 A, SOUND LEVEL 52 DB, TERMINAL MARKING INDICATION YES, TYPE OF LOAD UNIVERSAL AND LED RETROFIT, CONTAINS BATTERIES AND/OR ACCUMULATOR YES
