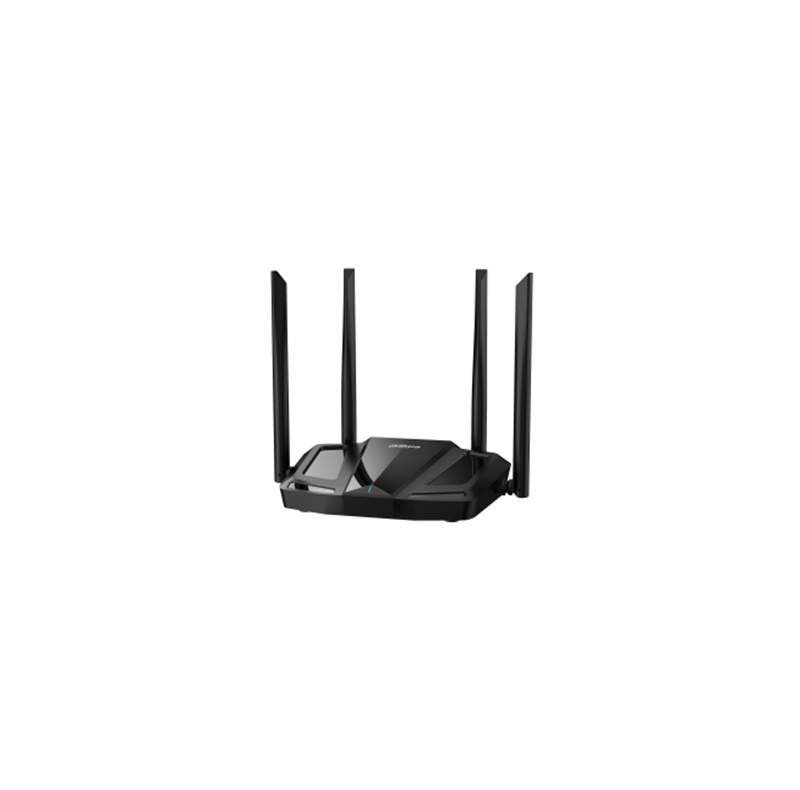

WLAN ROUTER DAHUA 300 MBPS/2.4 GHZ, 867 MBPS/5 GHZ AC12

MODEL : AC121.2 GBPS WIRELESS SPEED(300 MBPS@2.4 GHZ, 867 MBPS@5 GHZ). BACKWARD COMPATIBLE (IEEE 802.11 B/G/N/AC STANDARD). BEAMFORMING FOR BETTER COVERAGE. BI-DIRECTIONAL MU-MIMO. WIFI PROTECTED ACCESS(WPA/WPA2). GUEST WI-FI. PARENTAL CONTROL.SPECIFICATION : FUNCTION SLOTS 1×10/100/1000 MBPS WAN PORT 3×10/100/1000MBPS LAN PORT, BUTTON 1 × ESYNC BUTTON 1 × RESET BUTTON, POWER SUPPLY 12 VDC,1 A, MEMORY DDR 64 MB, INDICATOR LIGHT 1 × SYS, PERFORMANCE WIRELESS STANDARD 2.4 GHZ: IEEE 802.11B/G/N 5 GHZ: IEEE 802.11A/N/AC, WIRELESS TRANSMISSION RATE 2.4 GHZ: 300 MBPS 5 GHZ: 867 MBPS, OPERATING FREQUENCY 2.4 GHZ: 2.400 GHZ–2.484 GHZ 5 GHZ: 5.150 GHZ–5.850 GHZ, CHANNEL WIDTH 2.4 GHZ: 20/40 MHZ 5 GHZ: 20/40/80 MHZ, MAX. OUTPUT POWER CE EIRP: 20 DBM@2400-2483.5 MHZ, 23 DBM@5150-5250 MHZ, 20 DBM@5250-5350 MHZ, 27 DBM@5470-5725 MHZ, 14 DBM@5725-5850 MHZ. TRANSMISSION DISTANCE 15 M (49.21 FT), OPTIMAL TRANSMISSION DISTANCE 7 M (22.97 FT), CONNECTED WIRELESS TERMINALS 2.4 GHZ: 32, 5 GHZ: 32. FUNCTION EQUIPMENT MANAGEMENT WEB APP. NETWORK PROTOCOL : HTTPHTTPSTCP/IPIPV4UDPNTPDHCPDNSIPV6ICMPARPTCPWMM802.11B802.11G802.11NMAC FILTER802.11AC802.11A. NETWORK ACCESS PPPOE DYNAMIC IP STATIC IP. OPERATING MODE : WIRELESS ROUTER MODE, WIRELESS RELAY MODE (CLIENT+AP). ENCRYPTION MODE : WPA WPA2 WPA3 WPA/WPA2 WPA2/WPA3. SECURITY MECHANISM MAC FILTERING HTTPS, OFDMA YES, MU-MIMO YES, DHCP YES, NAT PORT MAPPING, FIRMWARE UPDATE, WEB UPDATEAPP UPDATE. SOFTWARE DEVICE MANAGEMENT: QUICK SETUP WIZARD SYSTEM MANAGEMENT SYSTEM LOG FACTORY RESET BACKUP CONFIG CONFIG RESTORE DMZ PORT MAPPING DIAGNOSIS&RESTART SMART CONTROL OF LED. RF MANAGEMENT: WIRELESS MODE SETTINGS WIRELESS BANDWIDTH SETTINGS WIRELESS CHANNEL SETTINGS TRANSMISSION POWER SETTINGS SSID BROADCAST. NETWORK TYPE: GUEST WI-FI HOST WI-FI DUAL-BAND 2.4/5G WIRELESS TIMINGEND DEVICE MANAGEMENT: WLAN MAC ADDRESS FILTERING PARENTAL CONTROL END DEVICE NAME CONFIG. POWER CONSUMPTION : FULL LOAD: 10.5 W IDLING: 2.1 W. OPERATING TEMPERATURE 0 °C TO +40 °C (+32 °F TO +104 °F), STORAGE TEMPERATURE –40 °C TO +70 °C (–40 °F TO +158 °F), OPERATING HUMIDITY 10%–90% (RH), NON-CONDENSING, NET WEIGHT 0.26 KG (0.57 LB), GROSS WEIGHT 0.7 KG (1.54 LB), PRODUCT DIMENSIONS 220 MM × 144 MM × 179 MM (8.66″ × 5.67″ × 7.05″) (L × W × H), PACKAGING DIMENSIONS 292 MM × 259 MM × 70 MM (11.50″ × 10.20″ × 2.76″) (L × W × H), STATICS PROTECTION : AIR DISCHARGE: 8 KV, CONTACT DISCHARGE: 4 KV. LIGHTNING PROTECTION : COMMON MODE: 2 KV, DIFFERENTIAL MODE: 1 KV. INSTALLATION DESKTOP MOUNT WALL MOUNT. CERTIFICATIONS CE. PACKING LIST : 1 × DEVICE, 1 × POWER ADAPTER, 1 × QUICK START GUIDE, 1 × LEGAL AND REGULATORY INFORMATION, 1 × NETWORK CABLE
